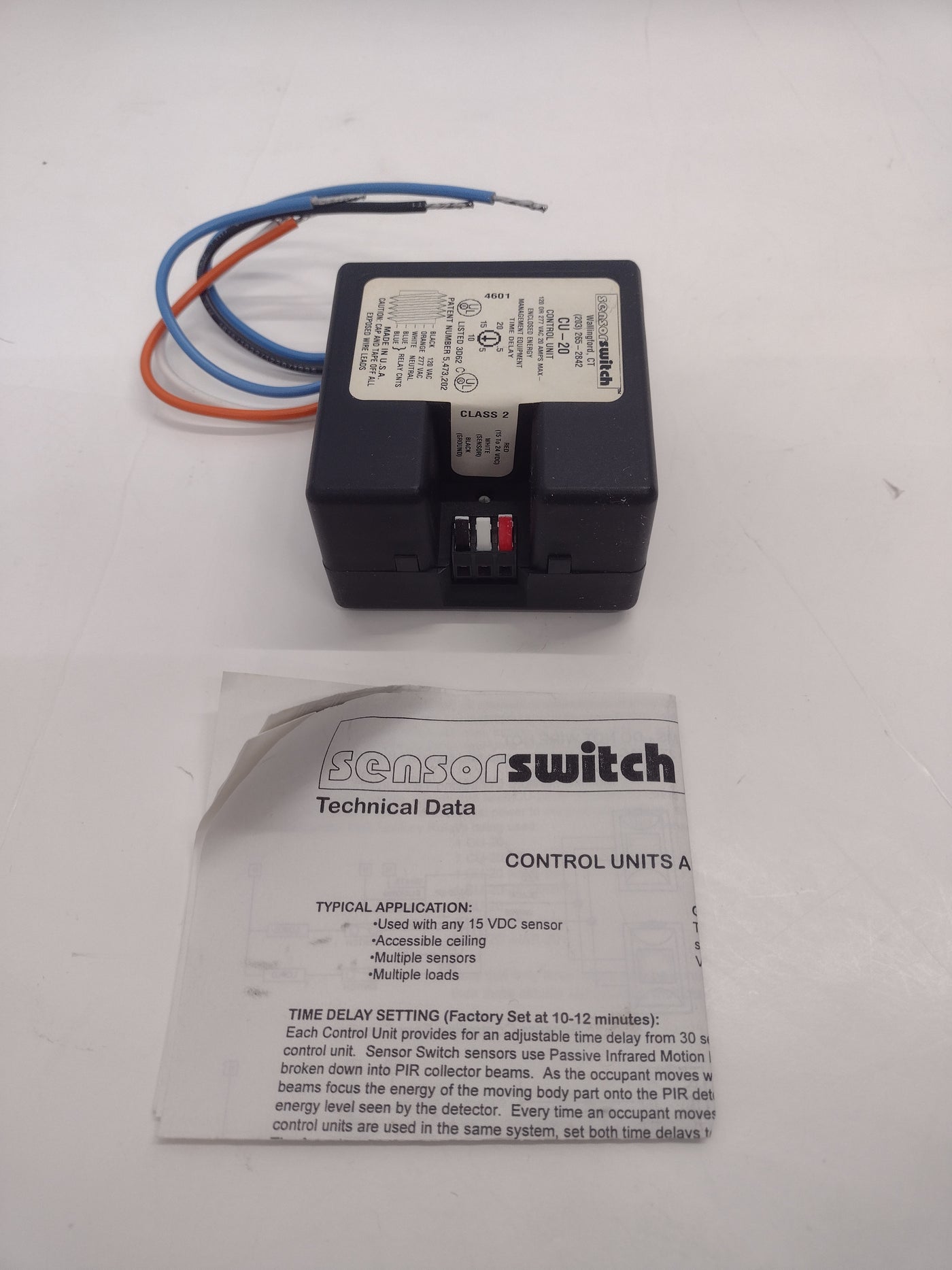

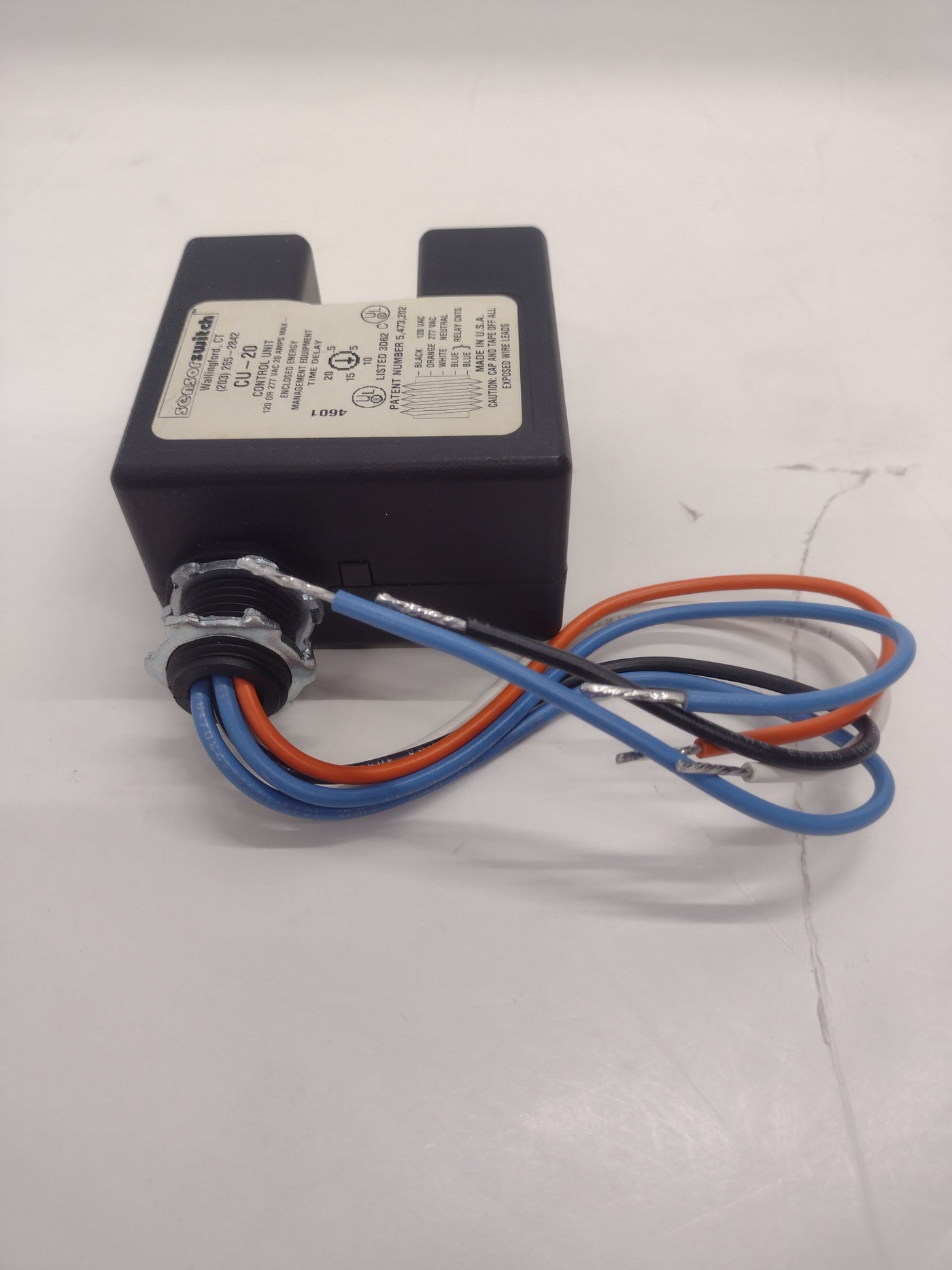

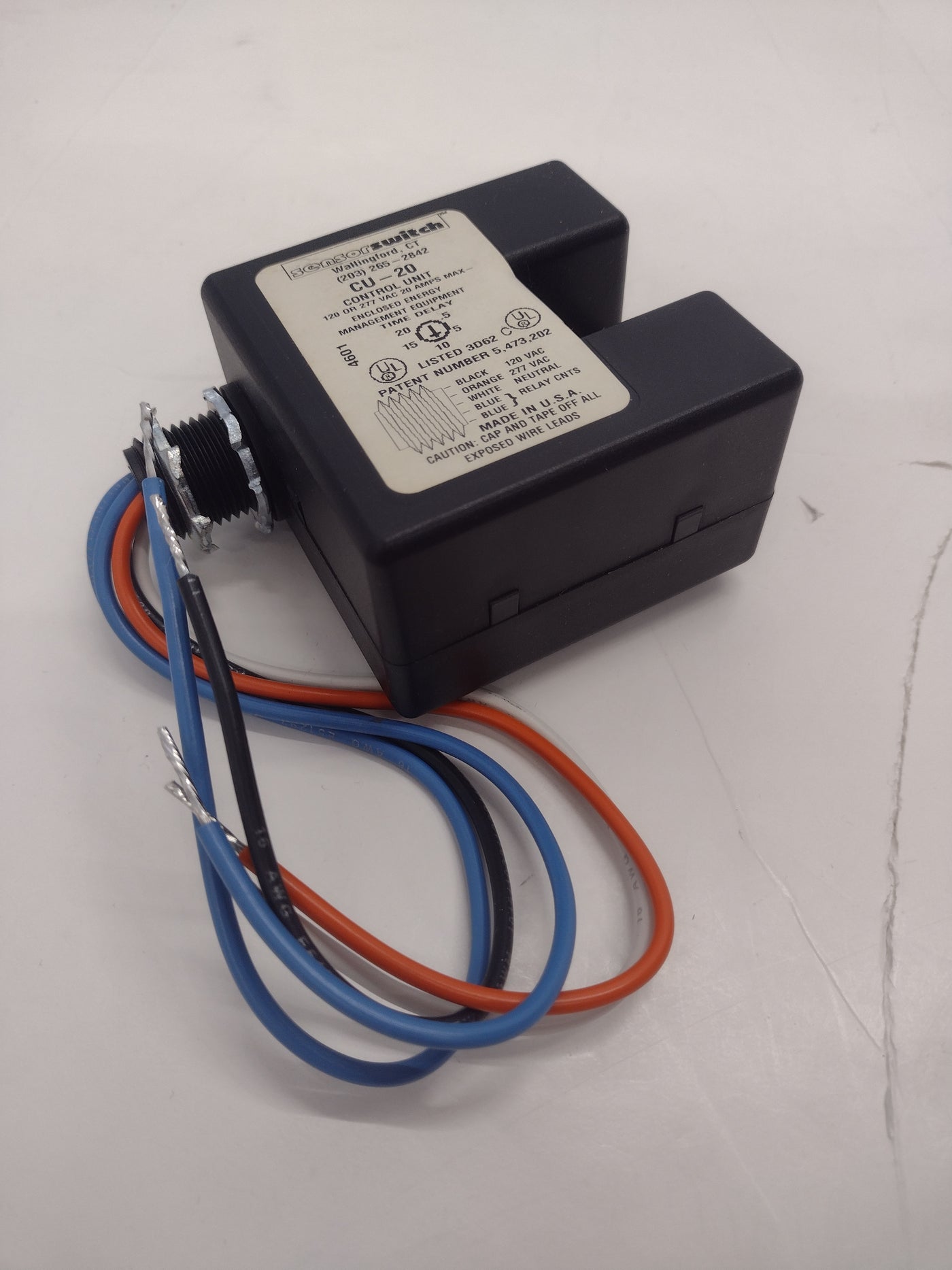

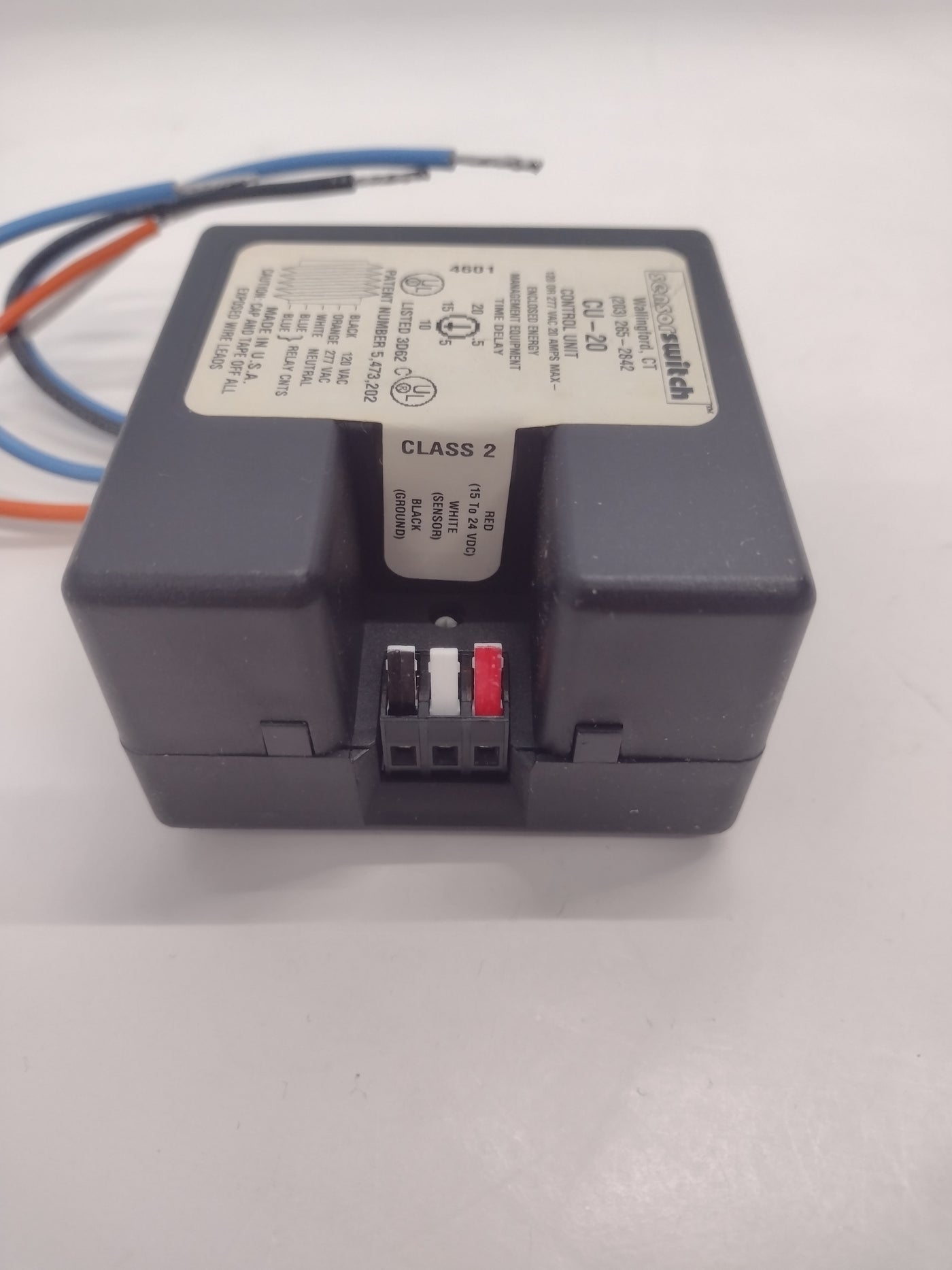

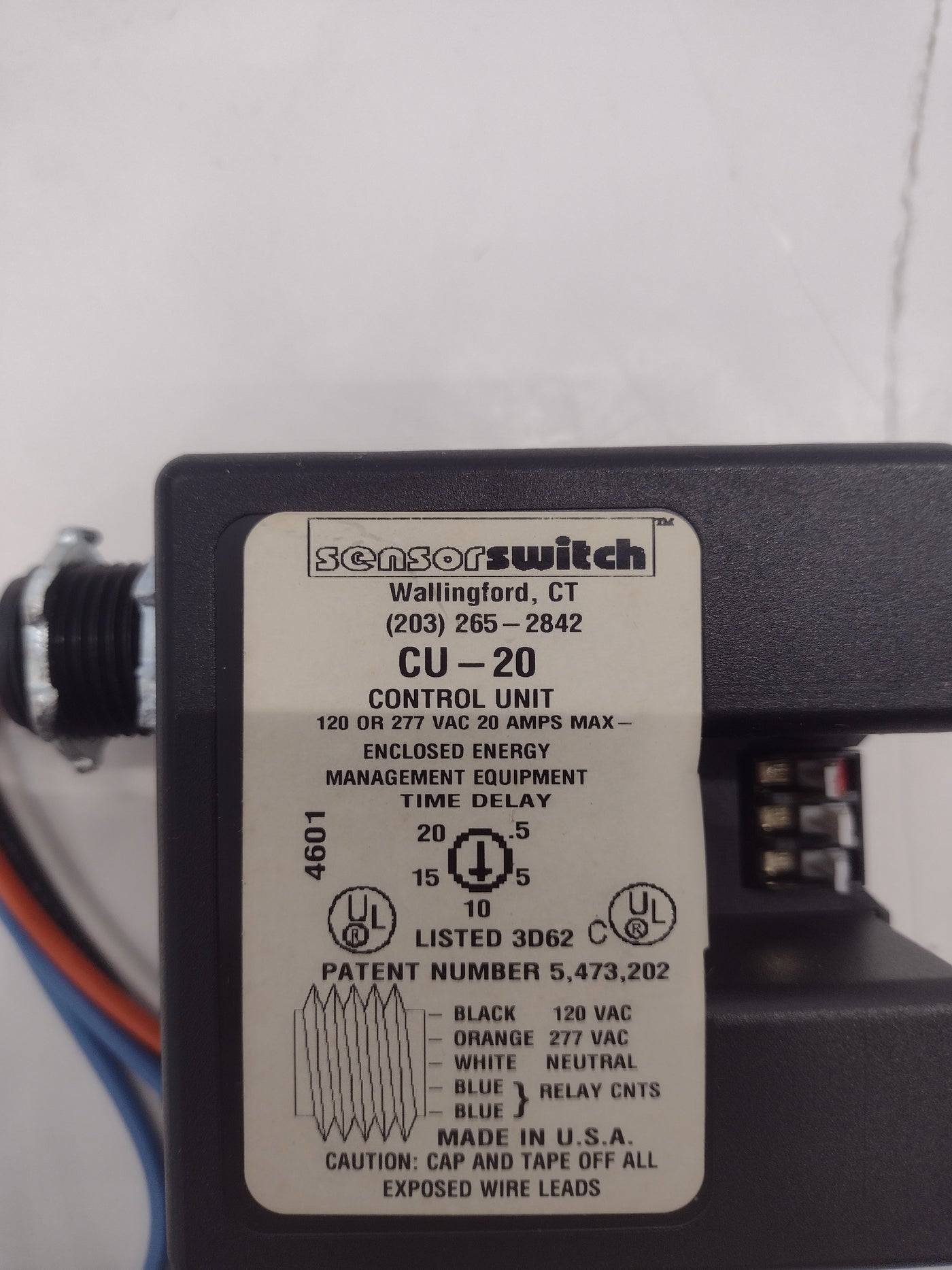

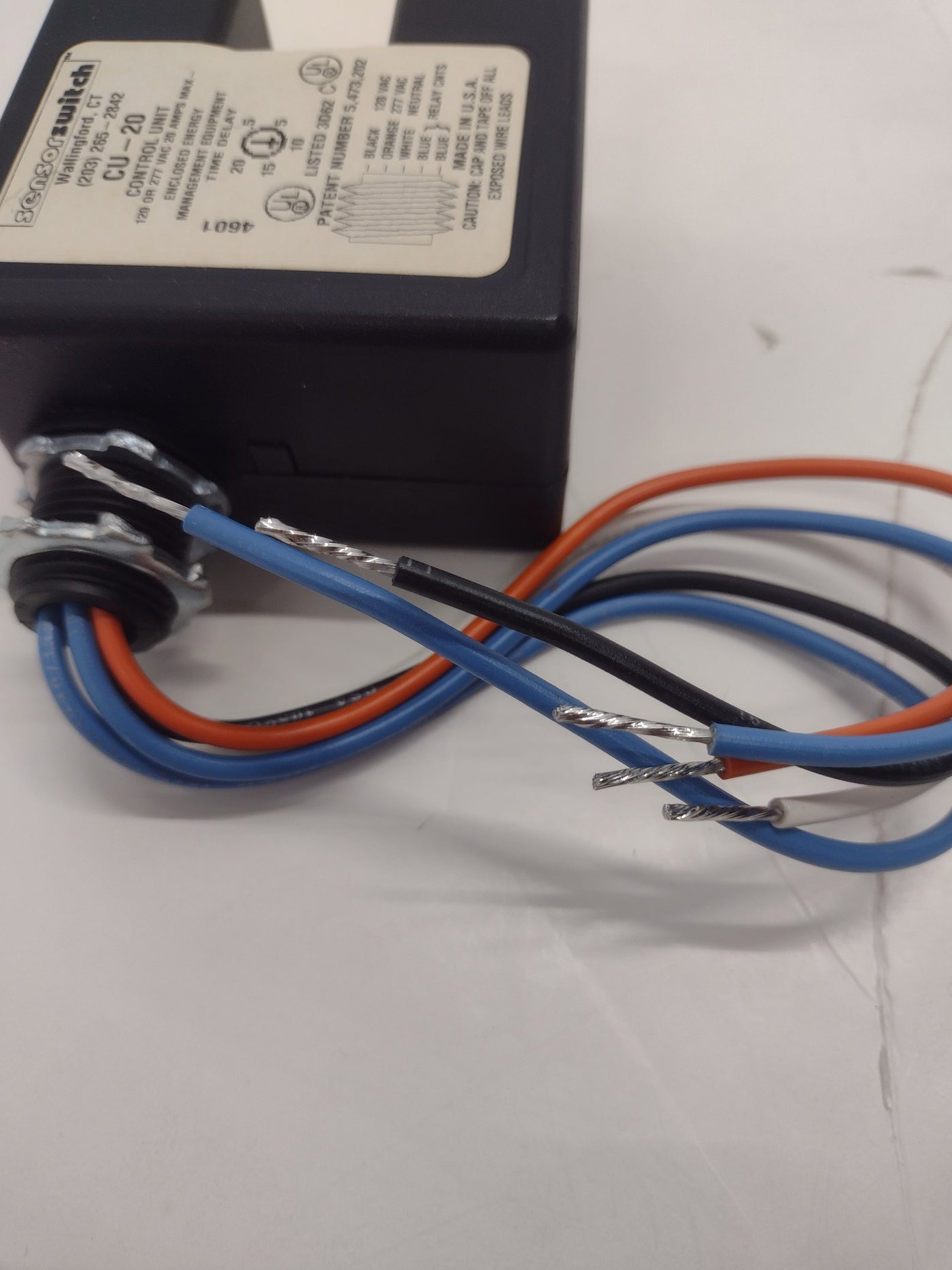

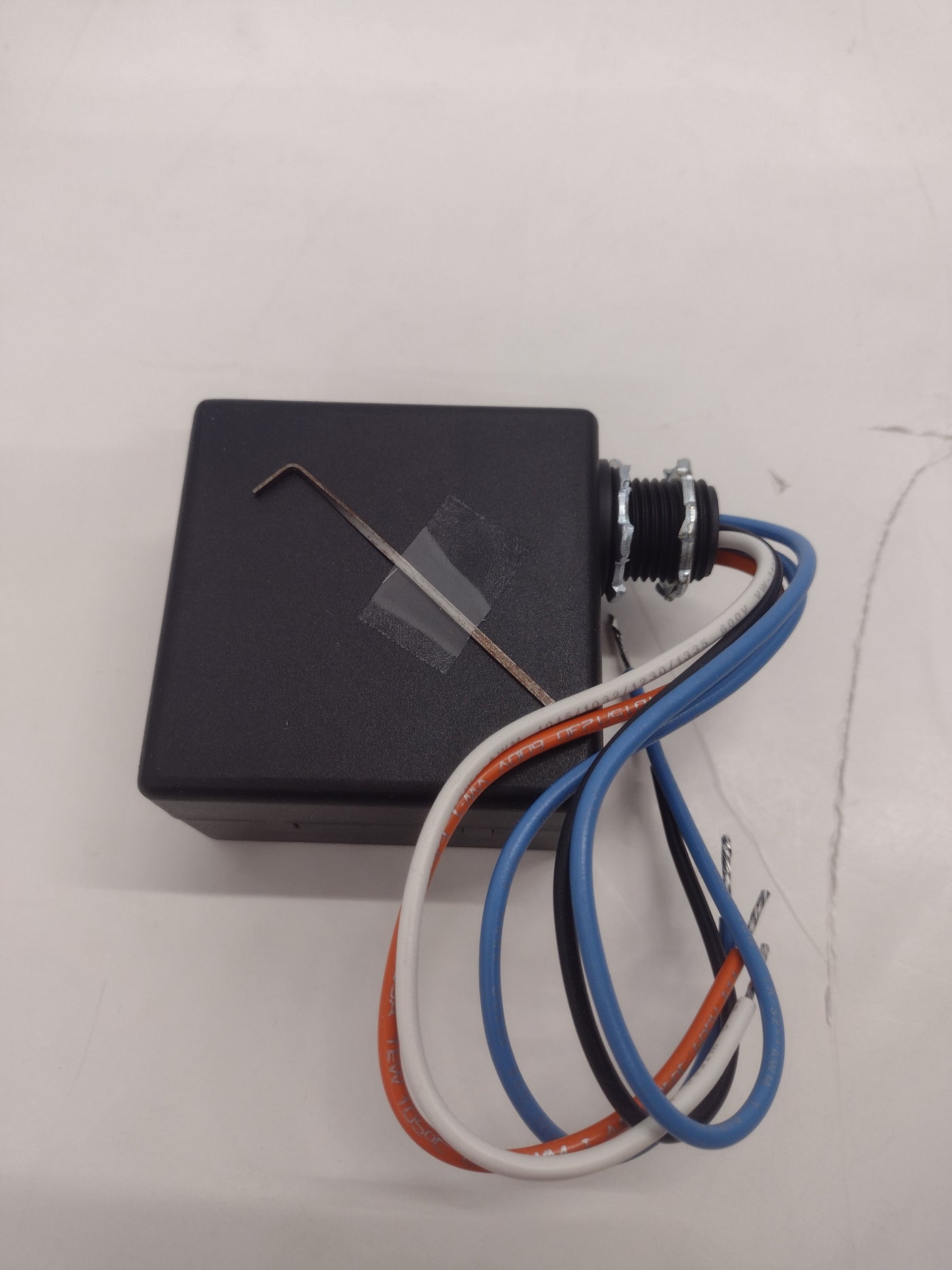

Sensorswitch CU-20 120/277 VAC 20 A Control Unit for VDC Sensors - NEW

    The SensorSwitch™ product line provides an innovative, high-quality and cost-effective controls solution for every application. With standalone wired and wireless options, SensorSwitch has a comprehensive product portfolio thoughtfully designed for easy installation and use.

     The SensorSwitch Line of Control Units was specifically designed to interface with the SensorSwitch line of 15 VDC Sensors. The CU-20 SensorSwitch Control Unit supports multiple sensors and multiple loads.

• Brand:                                        SensorSwitch

• Model:                                       CU-20

• Type:                                          Control Unit

• Color:                                         Black

• Power:                                        120-277 VAC; 50/60 Hz

• Current:                                      20 A (max)

• Available Current for Sensors:   115 mA

• Current Requirements:               7.5 mA (PIR Sensors), 10 mA (PDT Sensors)

• Time Delay:                                 0.5-20 min (adjustable)

• Certification:                               UL and cUL-listed

• Max. System Size:                      15 PIR sensors or 11 PDT sensors

• Package Dimensions:                 4.63"(L) x 4.63"(H) x 2.38"(W)

• Package Weight:                        0.7 lb.

(1) 1 Sensorswitch CU-20 120/277 VAC 20 A Control Unit for VDC Sensors
