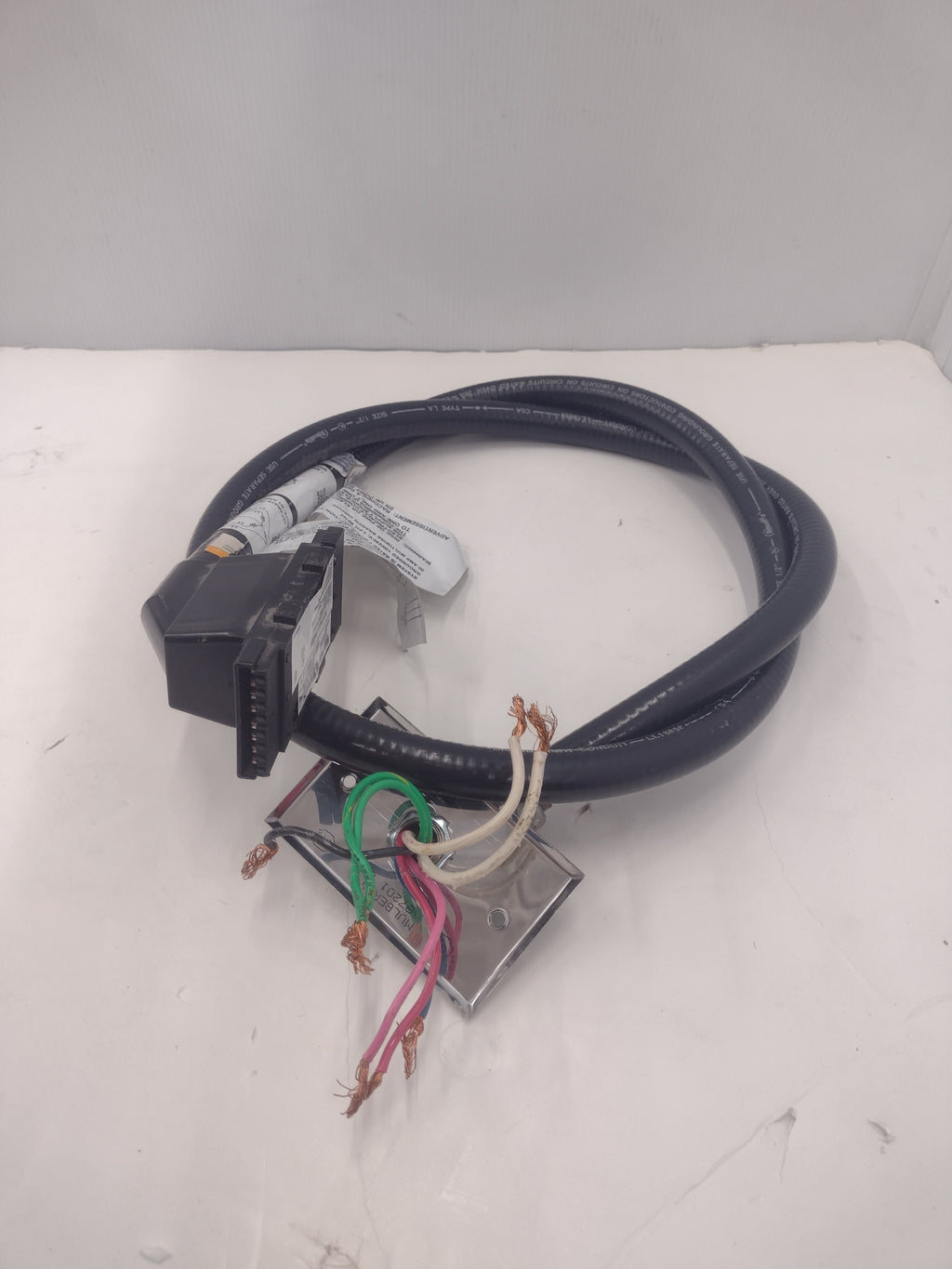

Herman Miller 72" A1322.2 Power Base Entry/Feed/Whip for AO Series 2 Cubicles

    This power entry connects a building’s electrical supply from a wall, floor, or column to the base of an Action Office Series 2 powered panel. It plugs directly into a receptacle located on the panel’s baseline electrical harness to distribute up to 4 20-amp circuits. The cable can be field cut to the appropriate length. The power entry is UL-listed and CSA certified and the finish is black.

• Wire Housing:                      FMC (flexible metal conduit)

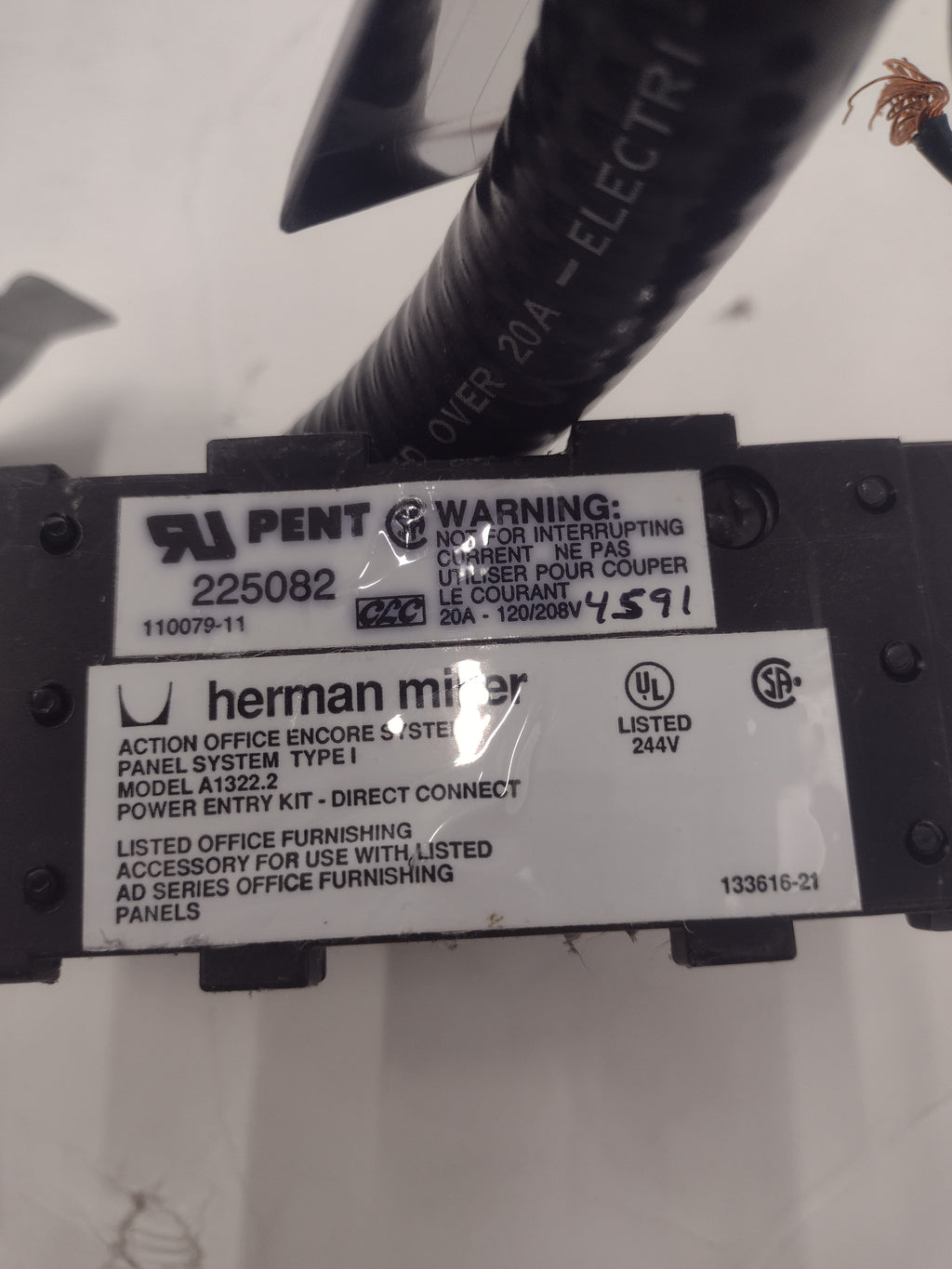

• MPN:                                     225082

• Model:                                   A1322.2

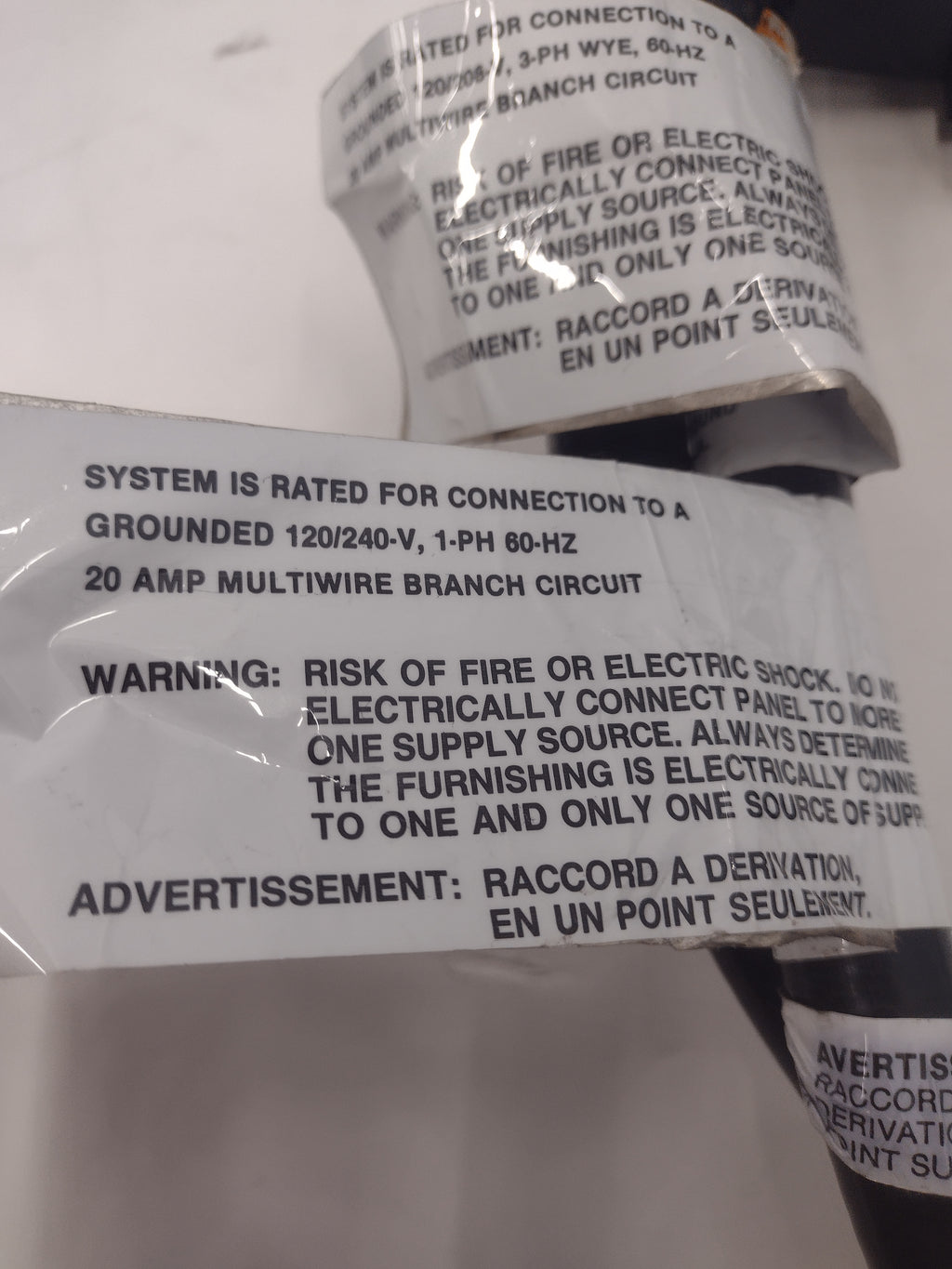

• Certification:                        CSA-certified

• Power Supply Options:       1 Phase (120 V/240 V; 20 A; 60 Hz)

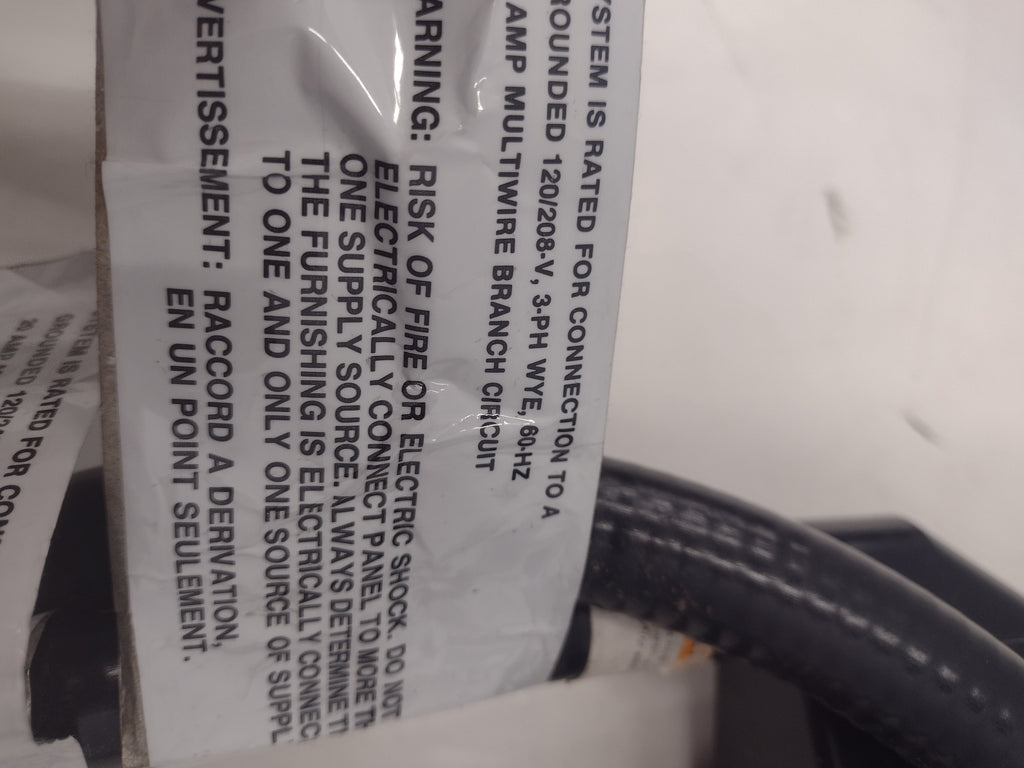

                                                         3 Phase (120 V/208 V; 20 A; 60 Hz)

• Number of Circuits:             Up to 4

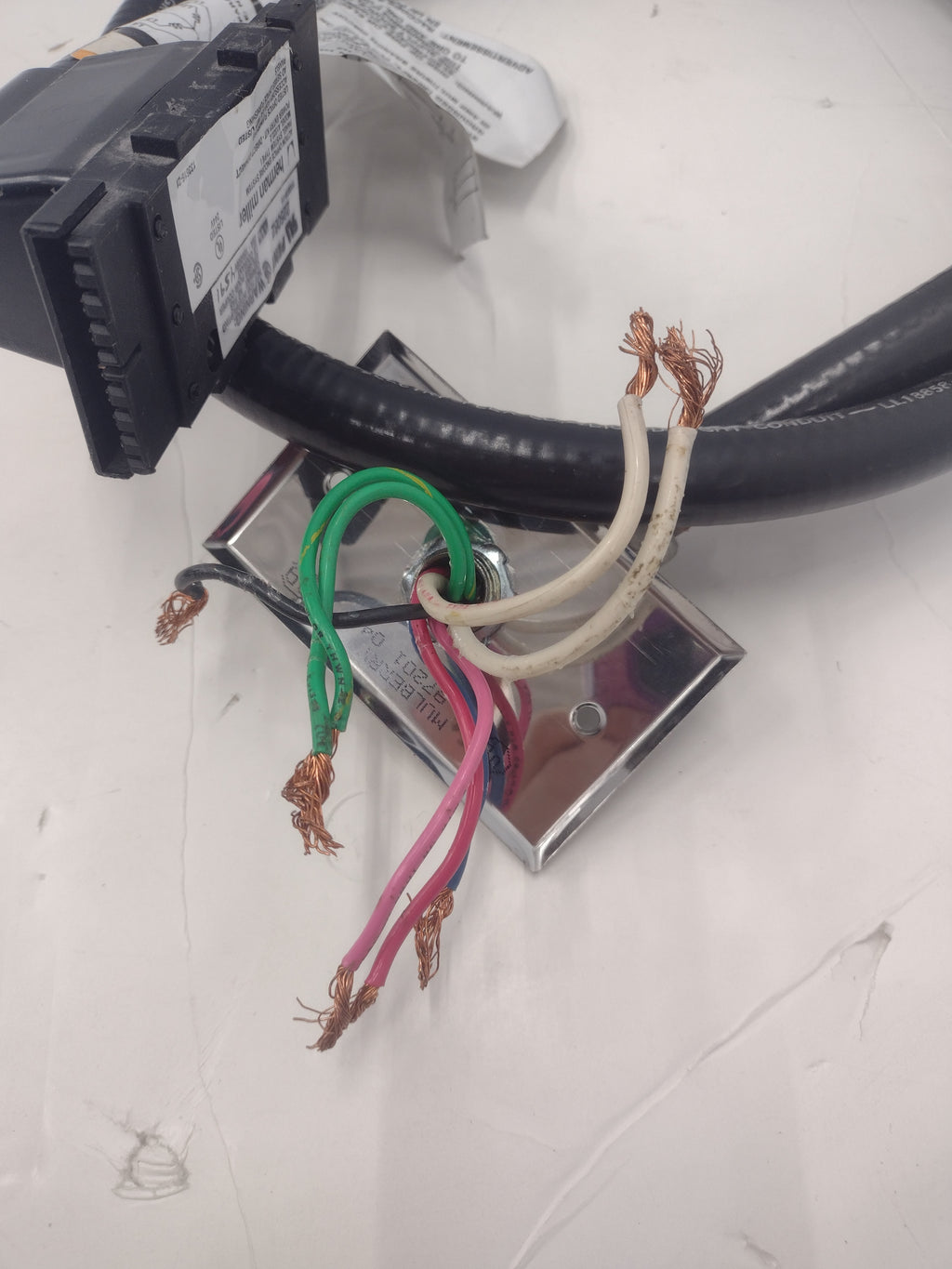

• Wires:                                    Eight wires

• Weight:                                 4.2 lb.

• Cable Length:                       72"

• Compatibility:                      Action Office Series 2 powered panels

• Color:                                    Black

 PACKAGE CONTENTS

(1) Herman Miller 72" A1322.2 Power Base Entry/Feed/Whip for AO Series 2 Cubicles

*WARNING: Hardwiring the powerbase to a building requires a certified electrician!*
