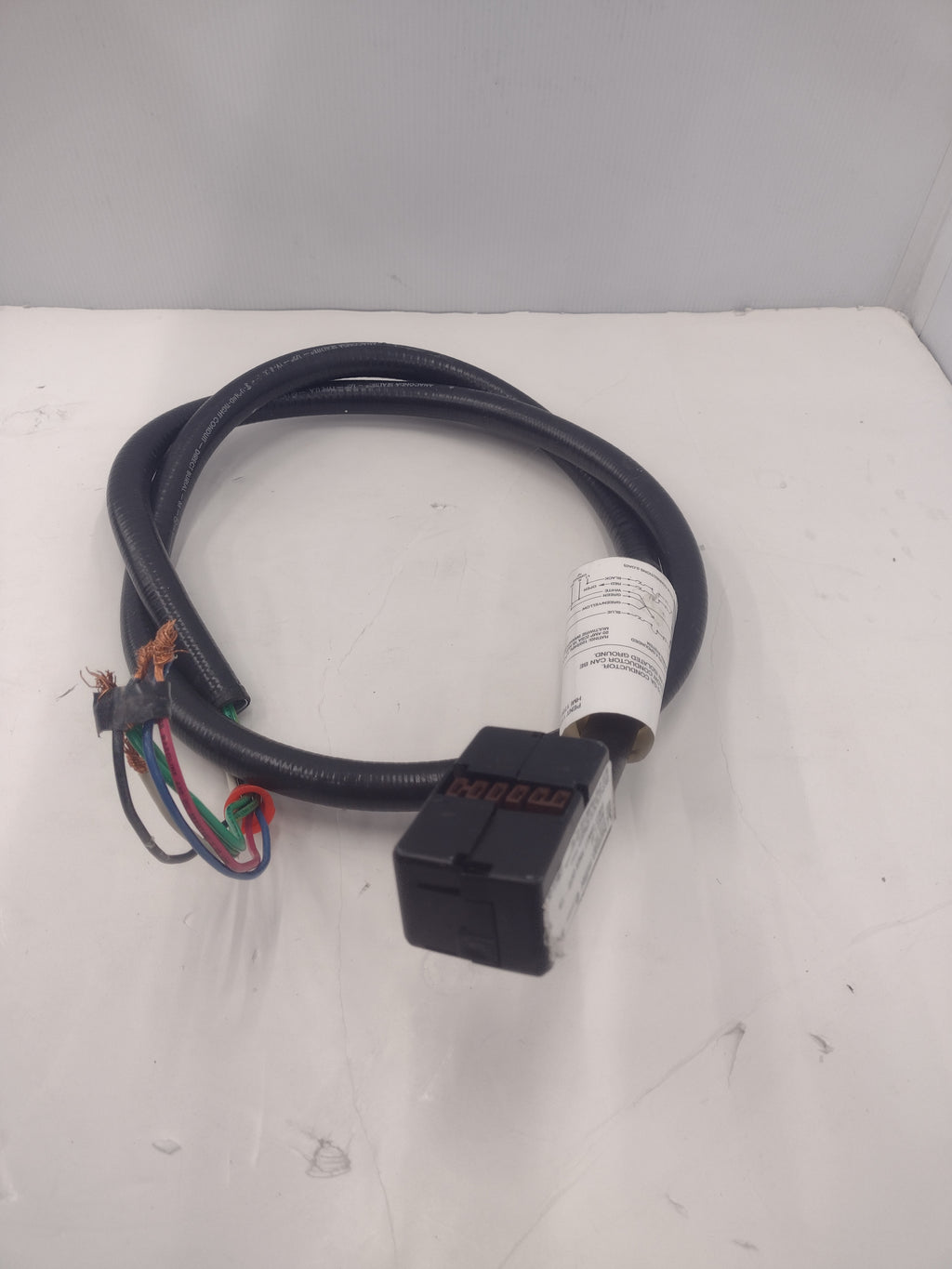

Herman Miller 72" A0322.L-MT Power Base Entry/Feed/Whip for Cubicles

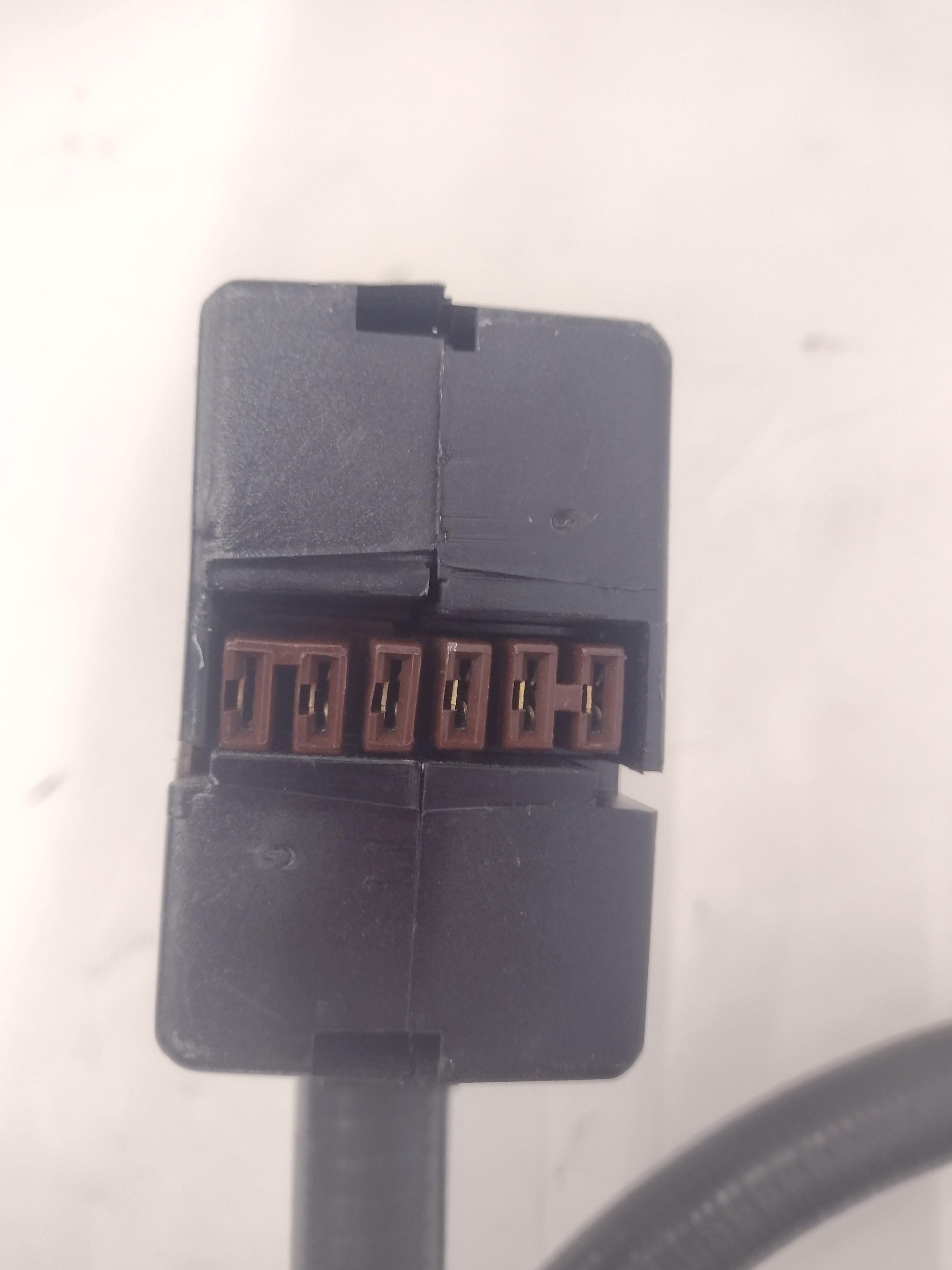

    This power entry connects a building’s electrical supply from a wall, floor, or column to the base of an Office Furnishing System Series powered panel. It plugs directly into a receptacle located on the panel’s baseline electrical harness to distribute up to 3 20-amp circuits. The cable can be field cut to the appropriate length. The power entry is UL-listed and CSA certified and the finish is black.

• Wire Housing:                      FMC (flexible metal conduit)

• MPN:                                     110571-26

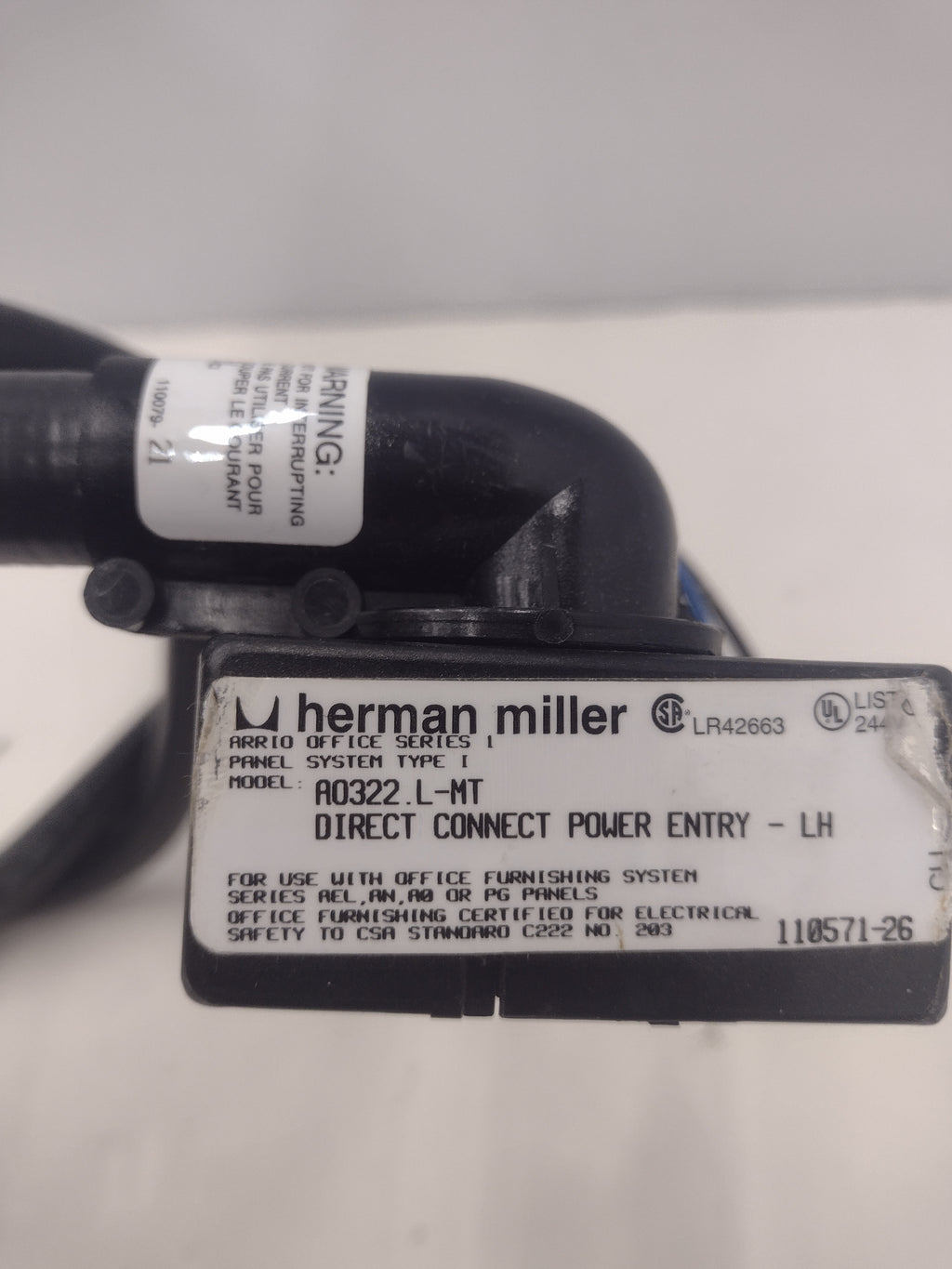

• Model:                                   A0322.L-MT

• Certification:                        CSA-certified

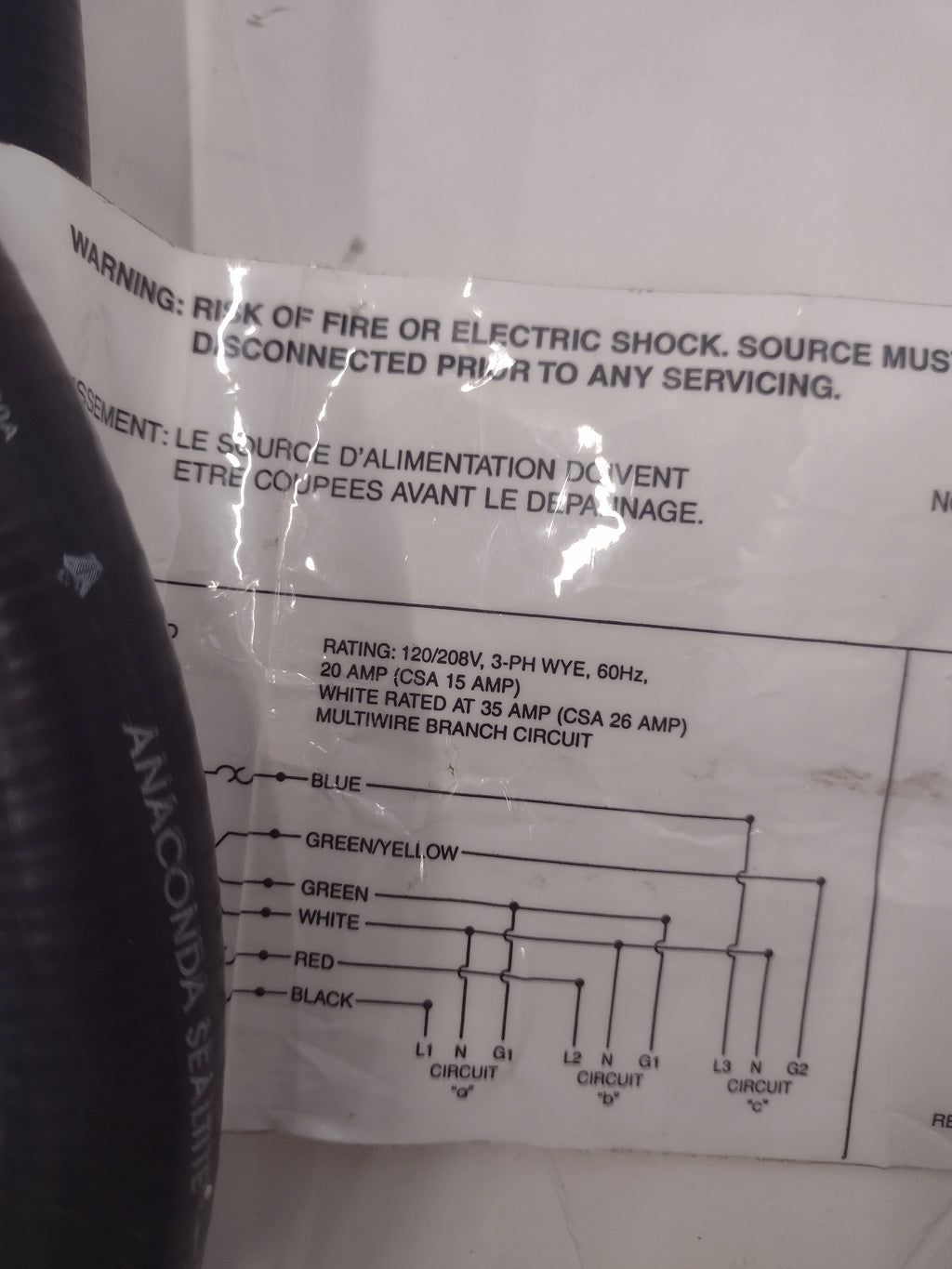

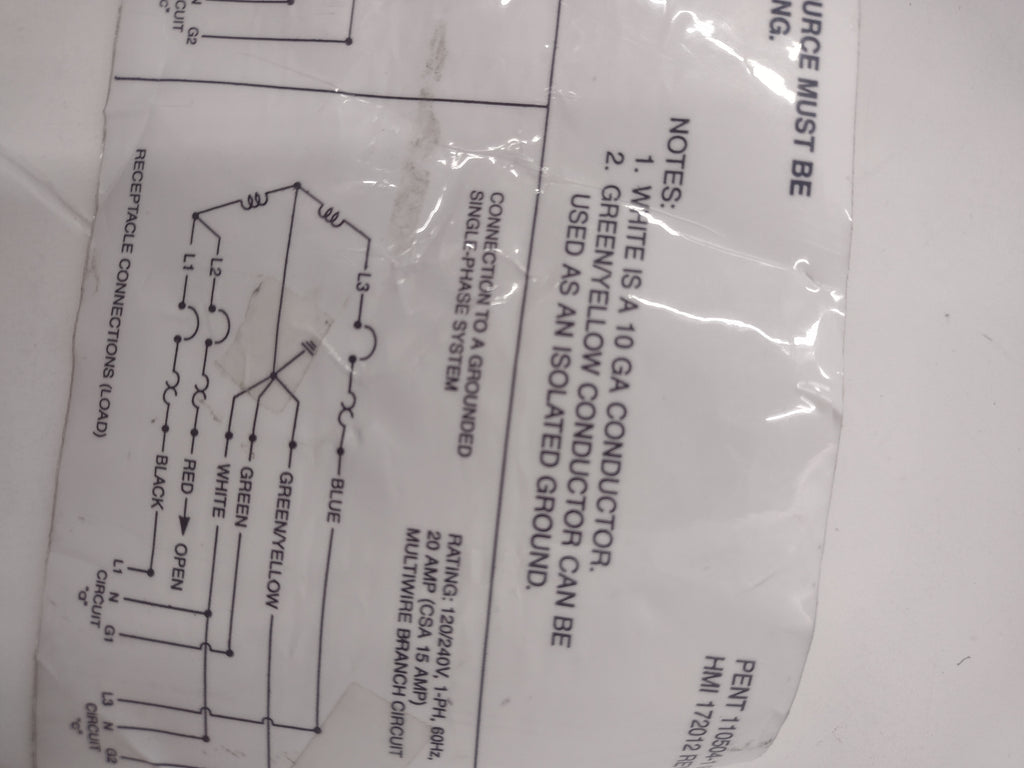

• Power Supply Options:       1 Phase (120 V/240 V; 20 A; 60 Hz)

                                                        3 Phase (120 V/208 V; 20 A; 60 Hz)

• Number of Circuits:             Up to 3

• Wires:                                    Six wires

• Weight:                                  3.1 lb

• Cable Length:                       72"

• Compatibility:                       Office Furnishing System Series AEL, AN, A0, or PG Panels

• Color:                                    Black

 PACKAGE CONTENTS

(1) Herman Miller 72" A0322.L-MT Power Base Entry/Feed/Whip for Cubicles

*WARNING: Hardwiring the powerbase to a building requires a certified electrician!*
