Herman Miller 30" K1322.R Power Base Entry/Feed/Whip for AO3 Cubicle Panels

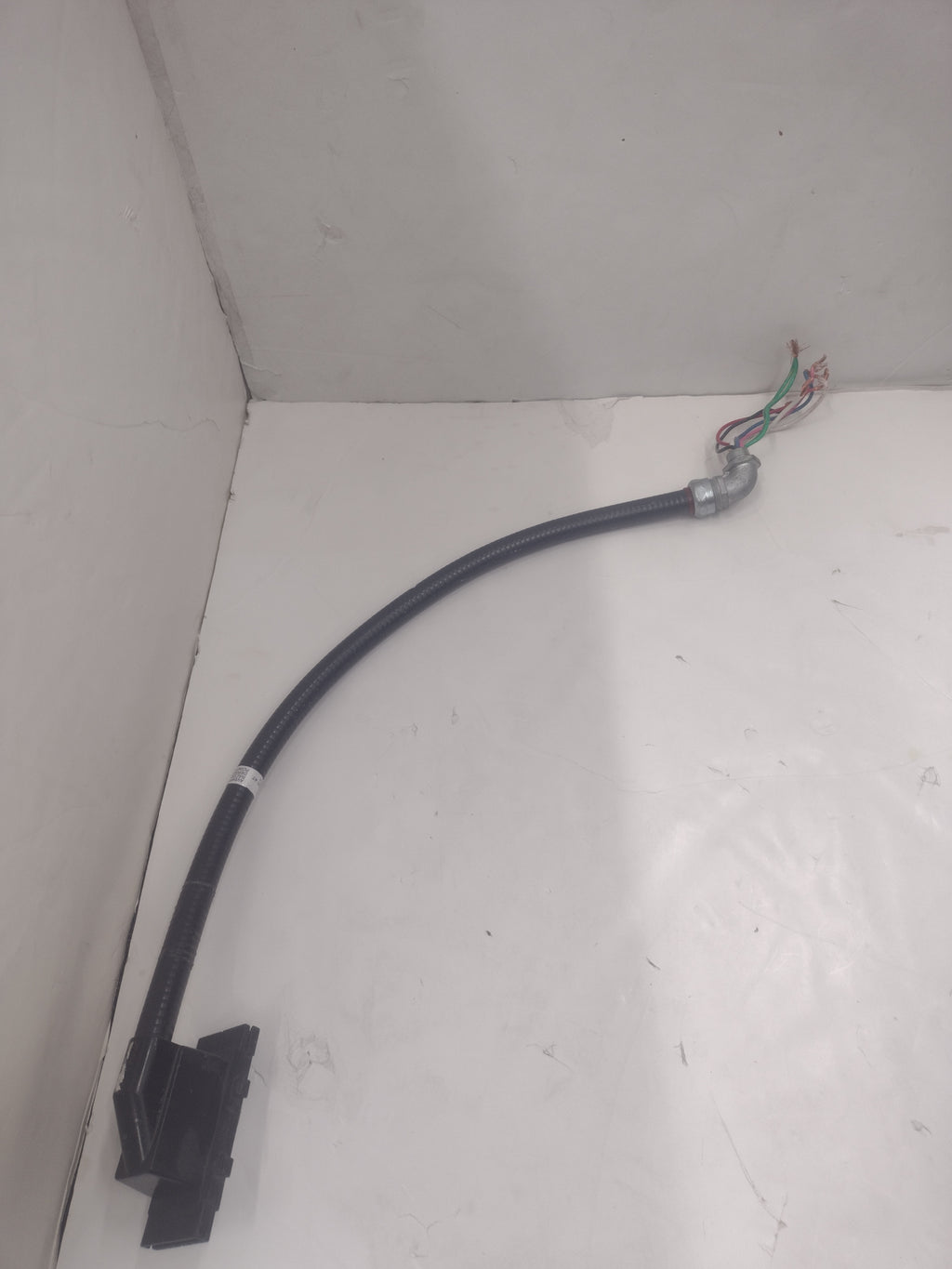

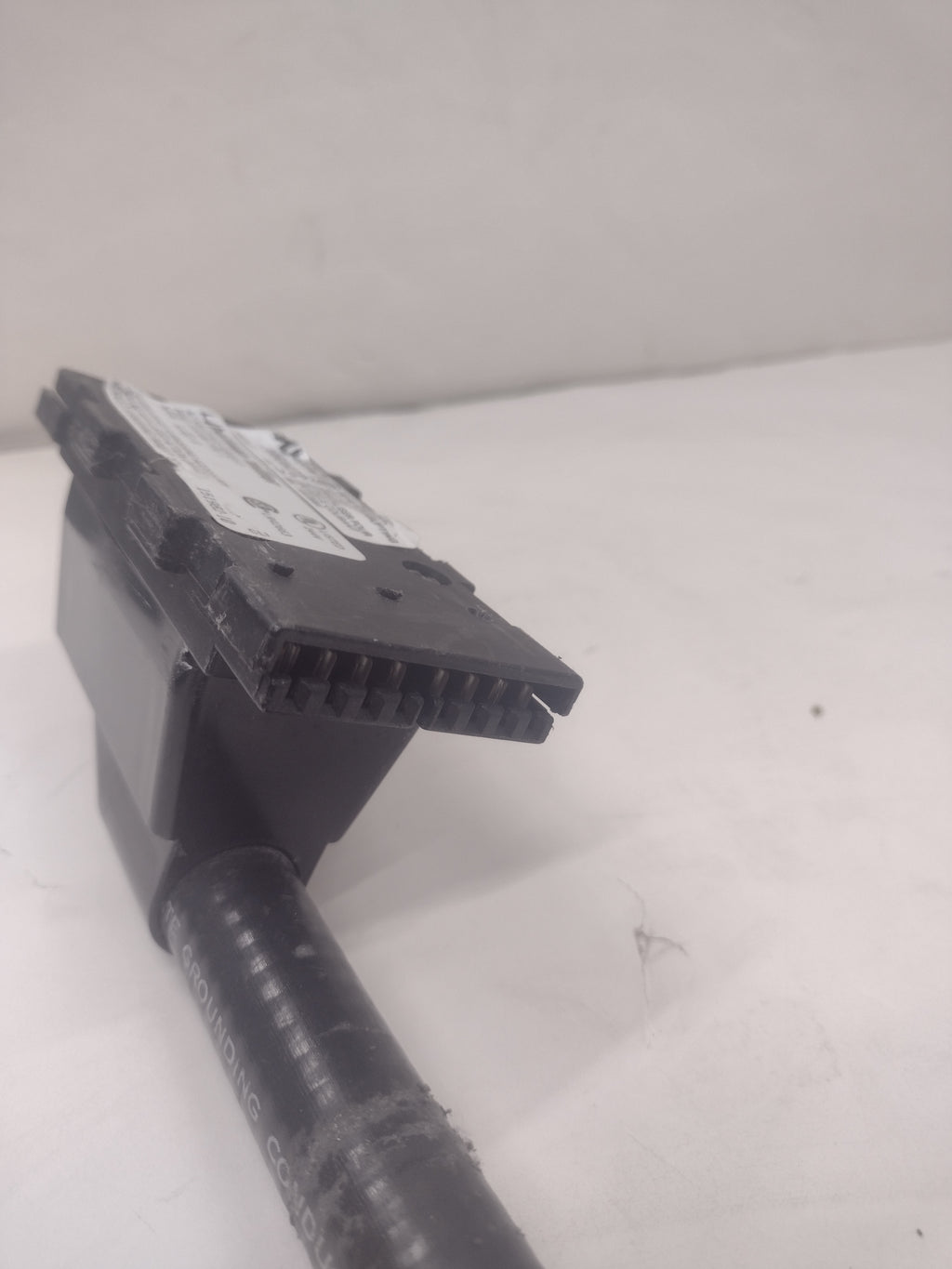

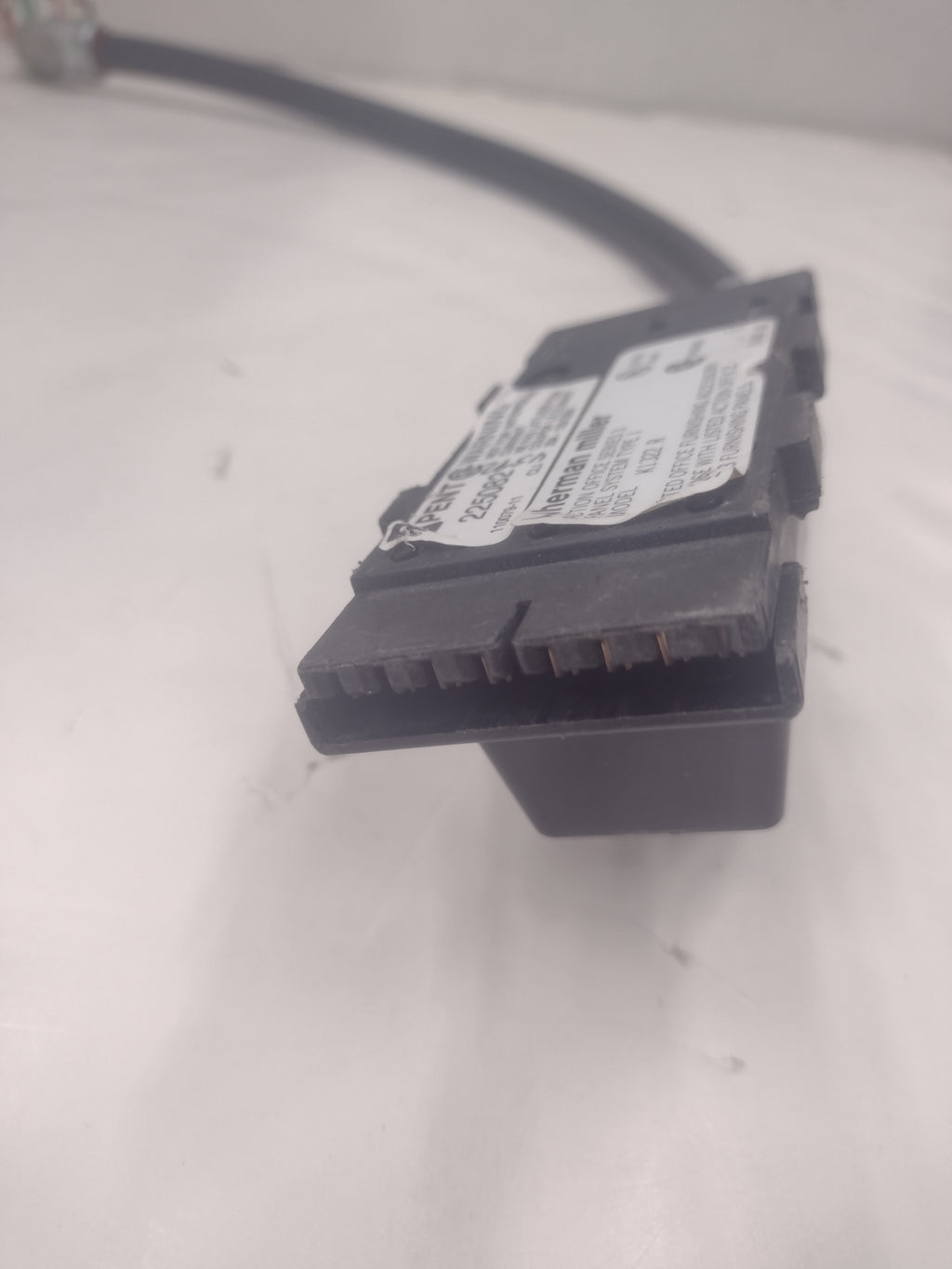

    This power entry connects a building’s electrical supply from a wall, floor, or column to the base of an Action Office Series 3 Type I powered cubicle panel. It plugs directly into a receptacle located on the panel’s baseline electrical harness to distribute up to 4 20-amp circuits. The cable can be field cut to the appropriate length. The power entry is UL-listed and CSA certified and the finish is black.

• Wire Housing:                      FMC (flexible metal conduit)

• MPN:                                     225082

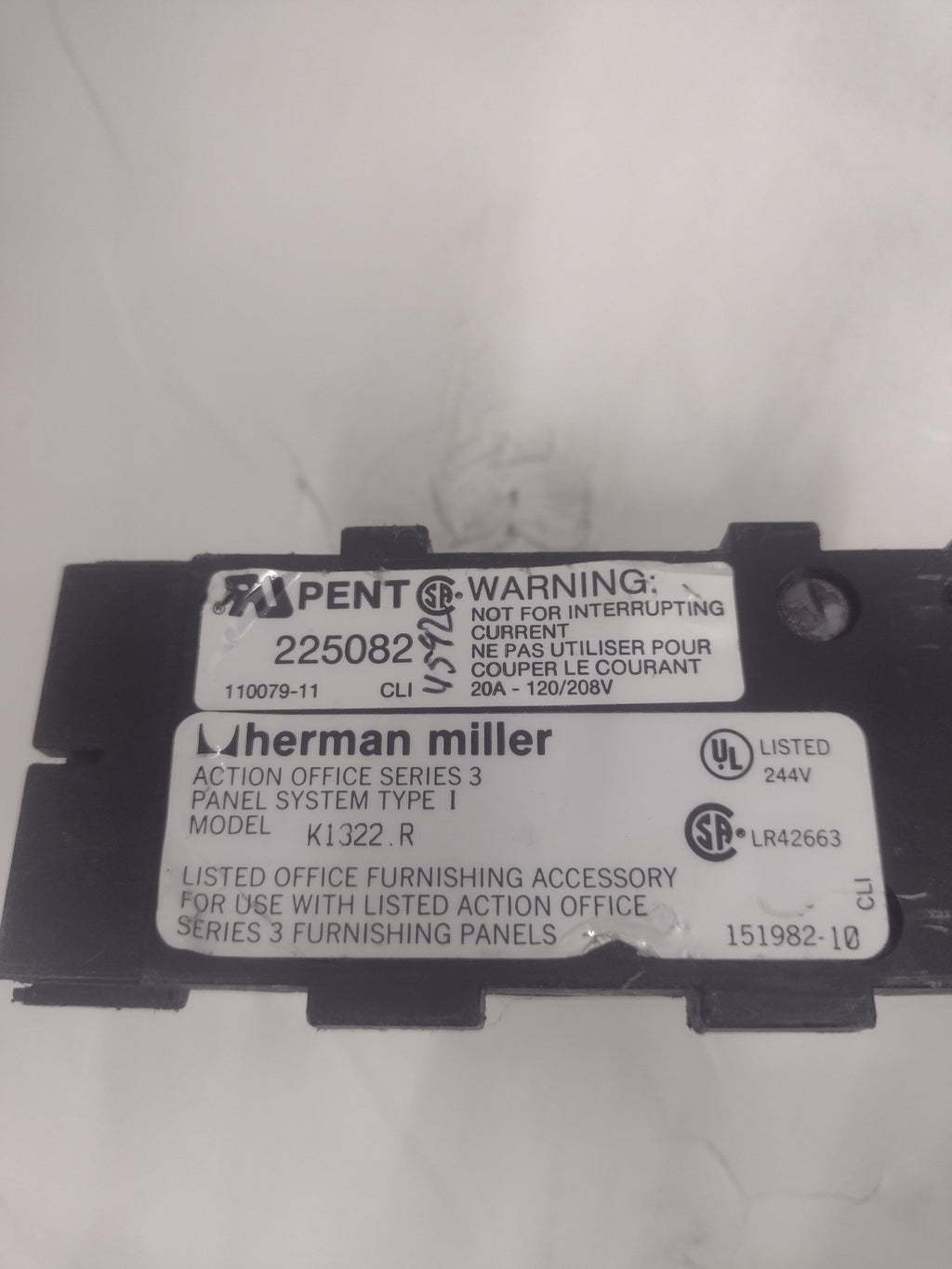

• Model:                                   K1322.R

• Certification:                        CSA-certified

• Power Supply Options:       1 Phase (120 V/240 V; 20 A; 60 Hz)

                                                        3 Phase (120 V/208 V; 20 A; 60 Hz)

• Circuits:                                Up to 4

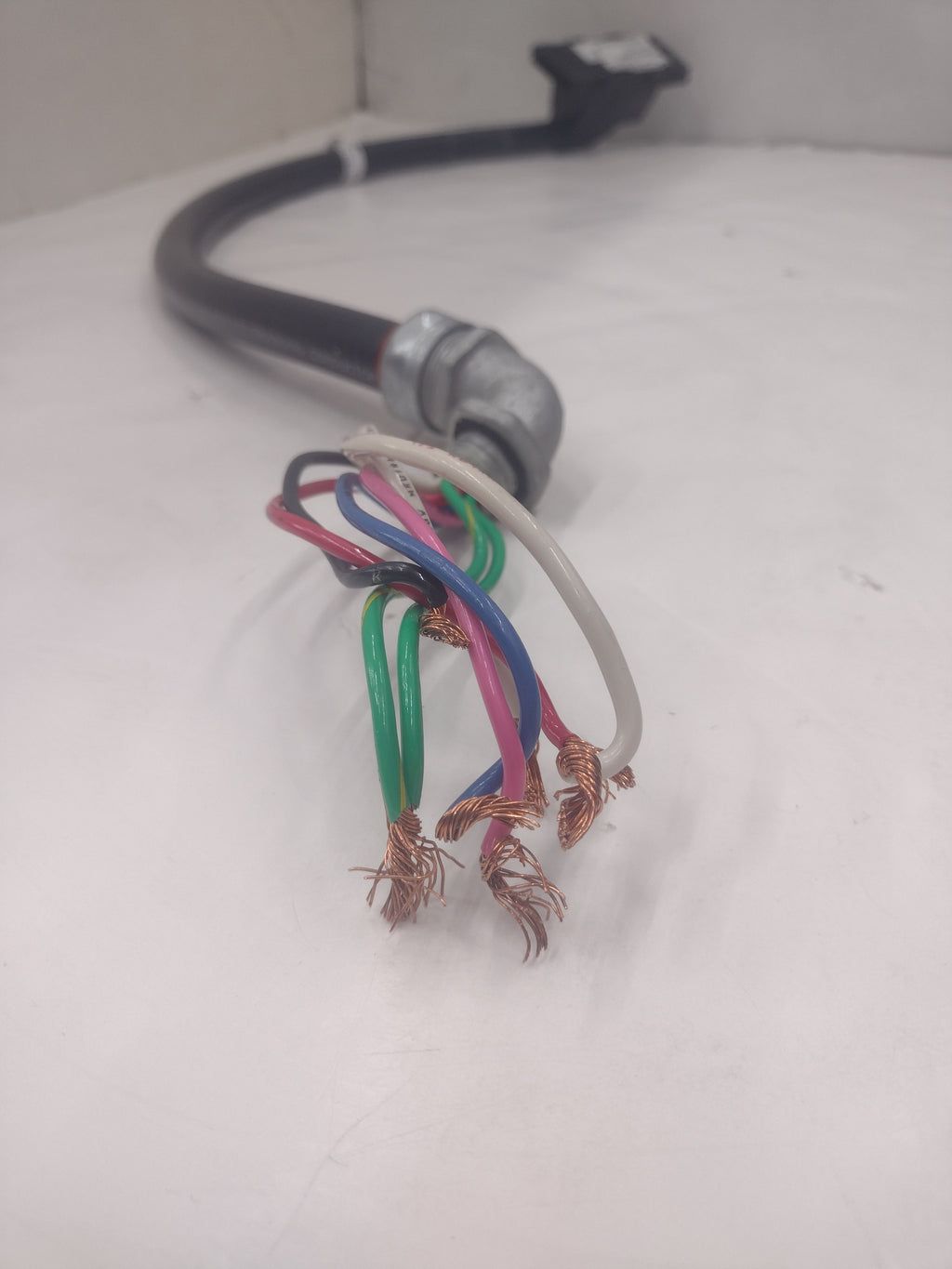

• Wires:                                    Eight (two AWG 10 wires and six AWG 12 wires)

• Weight:                                 1.8 lb

• Cable Length:                       30"

• Compatibility:                      Action Office Series 3 Type I Cubicle Panels

• Color:                                    Black

 PACKAGE CONTENTS

(1) 1 Herman Miller 30" K1322.R Power Base Entry/Feed/Whip for AO3 Cubicle Panels

*WARNING: Hardwiring the powerbase to a building requires a certified electrician!*
