American Dynamics (ADCA55DWOC4RN) 700 TVL Outdoor Dome Camera 2.8-10 mm VF Lens

Name: American Dynamics (ADCA55DWOC4RN) 700 TVL Outdoor Dome Camera 2.8-10 mm VF Lens
Brand: Value Office Furniture & Equipment
Price: 29.99 USD
Availability: OutOfStock

$ 29.99

BUYER PAYS SHIPPING COSTS

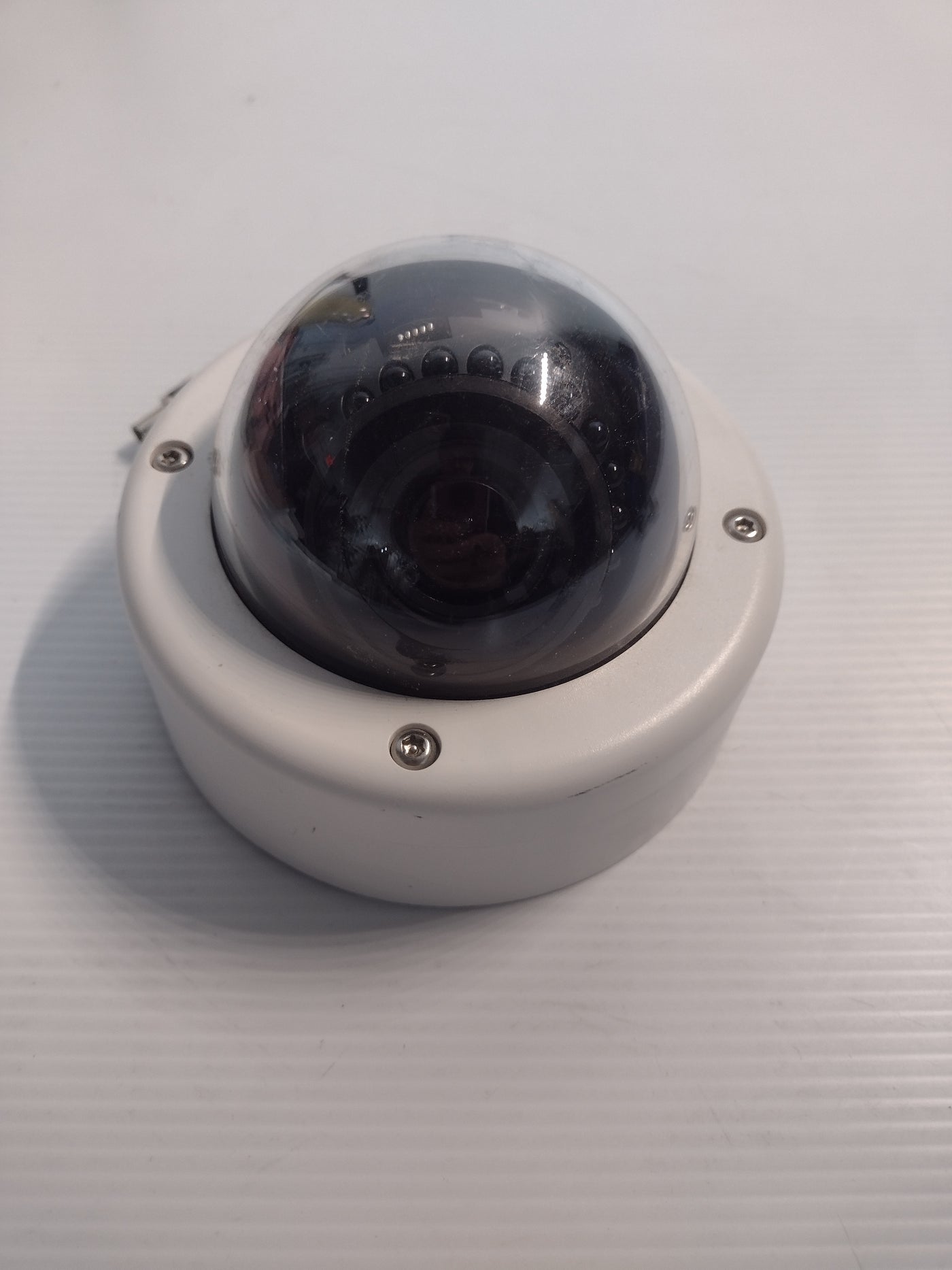

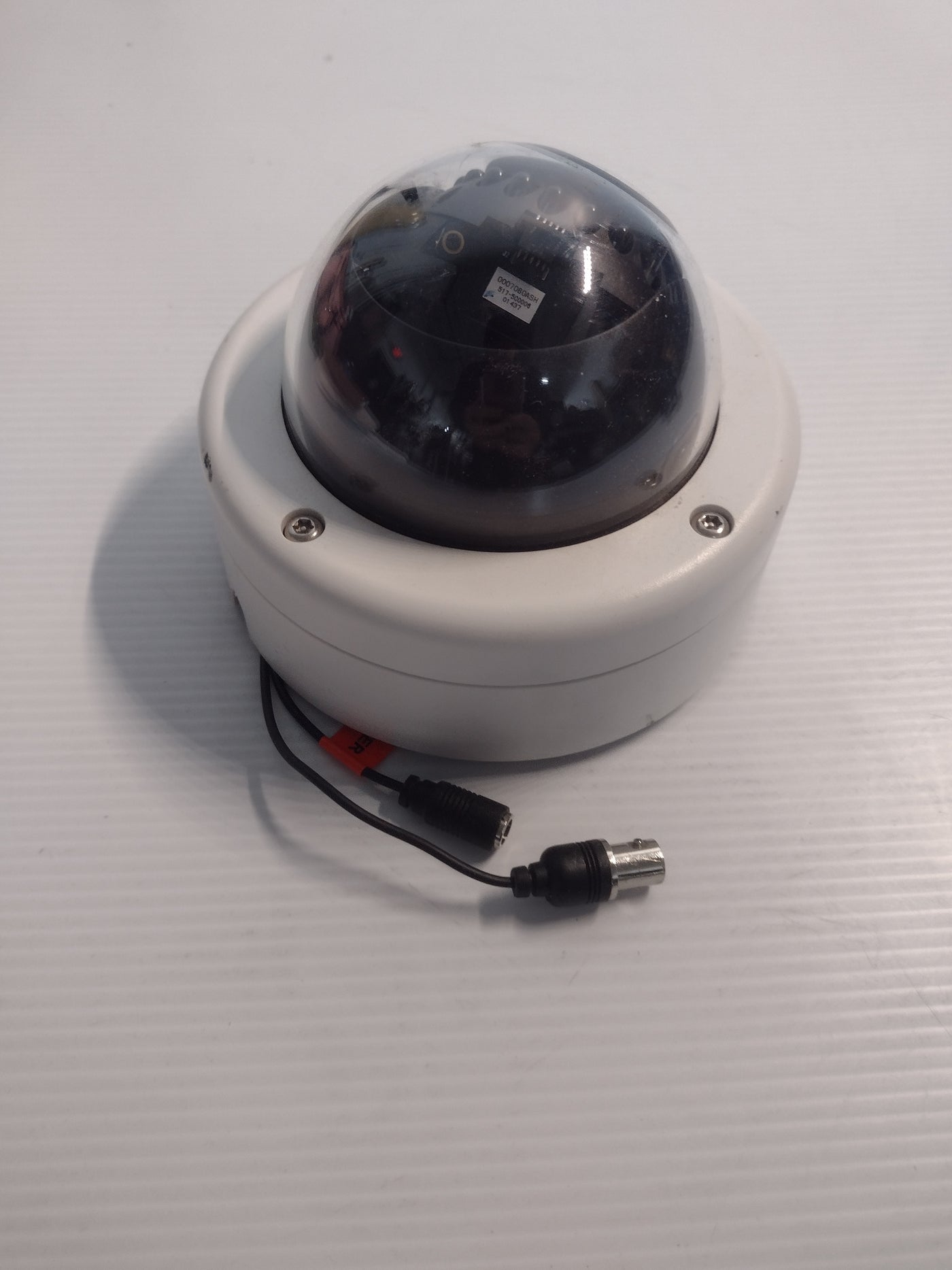

These cameras are used but still in good condition condition. There are a few tiny scratches on the dome, but they do not affect the overall functionality of the cameras.

PRODUCT OVERVIEW

The American Dynamics ADCA55DWOC4RN Mini-Domes outdoor models provide exceptional performance, easy installation/setup and a variety of mounting options. With exceptional True Day/Night mode and 700 TVL resolution, the mini-domes deliver true color reproduction under a variety of light sources. The American Dynamics ADCA55DWOC4RN Mini-Domes leverage Sony 960H technology providing a horizontal resolution of 700 TVL which captures natural, high-definition video for clear, crisp images.

These cameras provide true color pictures with higher sensitivity in less than ideal lighting conditions compared to conventional CCTV cameras. These mini-domes offer IR illuminators for operation in scenes of less than 0.3 lux, even in complete darkness. These cameras provide an intuitive on-screen display (OSD) menu to configure and adjust various camera settings making setup quick and easy. You can adjust for exposure, white balance, backlight compensation, Day/Night mode selection, privacy zones, etc. An advanced, pivoting 3-axis gimbal allows you to easily position the camera in the exact angle for most applications. It also allows you to make critical focus and focal length improvements.

Designed for fast and efficient installation, the mini-domes utilize patent-pending, quick-install adapter making both wall and ceiling installations effortless. With a high-impact, vandal-resistant dome housing, the outdoor mini-dome is built to withstand the harshest environments. Additionally, the camera enclosure is IP66-rated for complete protection against dust and other debris, and against water damage. An optional heater provides extra protection in cold weather environments.

SPECIFICATIONS

Operational

Imager: 1/3" Sony CCD image sensor

Horizontal Resolution: 700 TVL

Active Pixel Count (H x V): 976 x 494 (NTSC); 976 x 582 (PAL)

Lens (Varifocal Auto Iris): 2.8-10mm Varifocal

Scanning Frequency: 60Hz (NTSC); 50Hz (PAL)

Min. Scene Illumination: 0.3 lux (day mode); 0.03 lux @ F1.2 (night mode)

Iris Control: DC auto

S/N Ratio: >48 dB (100 IRE, F1.2)

Synchronization: Internal

Shutter Speed: 1/60-1/10000 (NTSC); 1/50-1/10000 (Outdoor only) (PAL)

IR Illuminators: 850nm/20m (Outdoor only)

Controls

AGC: Auto/Manual

AES: 1/60-1/10000 (NTSC); 1/50-1/10000 (PAL)

BLC: Full range

White Balance: Auto, Manual, Push, Push Lock, User 1, 2, Anti CR

Auto White Balance Range: 2700K-9700K

Day/Night: True Day Night (auto, color, b/w)

Brightness: 0-255

Sharpness: 0-255

Digital Noise Reduction: 2D, 3D motion adaptive (0-255)

Motion: 4 area

Privacy Zones: 15 programmable

Mirror: Horizontal and vertical

On-screen Display: Camera name

Connectors

Video Output: Composite

Electrical

Voltage: DC 10.8V-13.3V, AC 19.2V-28.8V

Power Consumption: 2.8W; 5.2W (max.) when True Day/Night on

Mechanical

Dimensions (D x L): 136 x 94.2 mm (5.35 x 3.7 in)

Weight: 560 g (1.23 lbs.)

Housing Material: Polycarbonate

Housing Color: White (RAL 9003, Pantone 705)

Environmental

Operational Temperature: -10°C to 50°C (14°F to 122°F) (Without Optional Heater); -40°C to 50°C (-40°F to 122°F) (With Optional Heater)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Relative Humidity: 90% non-condensing

Regulatory

IP Rating: IP66

Emissions: Part 15, Class B (FCC); EN55022, Class B (CE)

Immunity: CE: EN50130-4

Safety: UL60950 and CSAC22.2 No. 60950 (NTSC); IEC60950 RoHS Compliant (PAL)

PACKAGE CONTENTS

(1) 1 American Dynamics (ADCA55DWOC4RN) 700 TVL Outdoor Dome Camera 2.8-10 mm VF Lens
